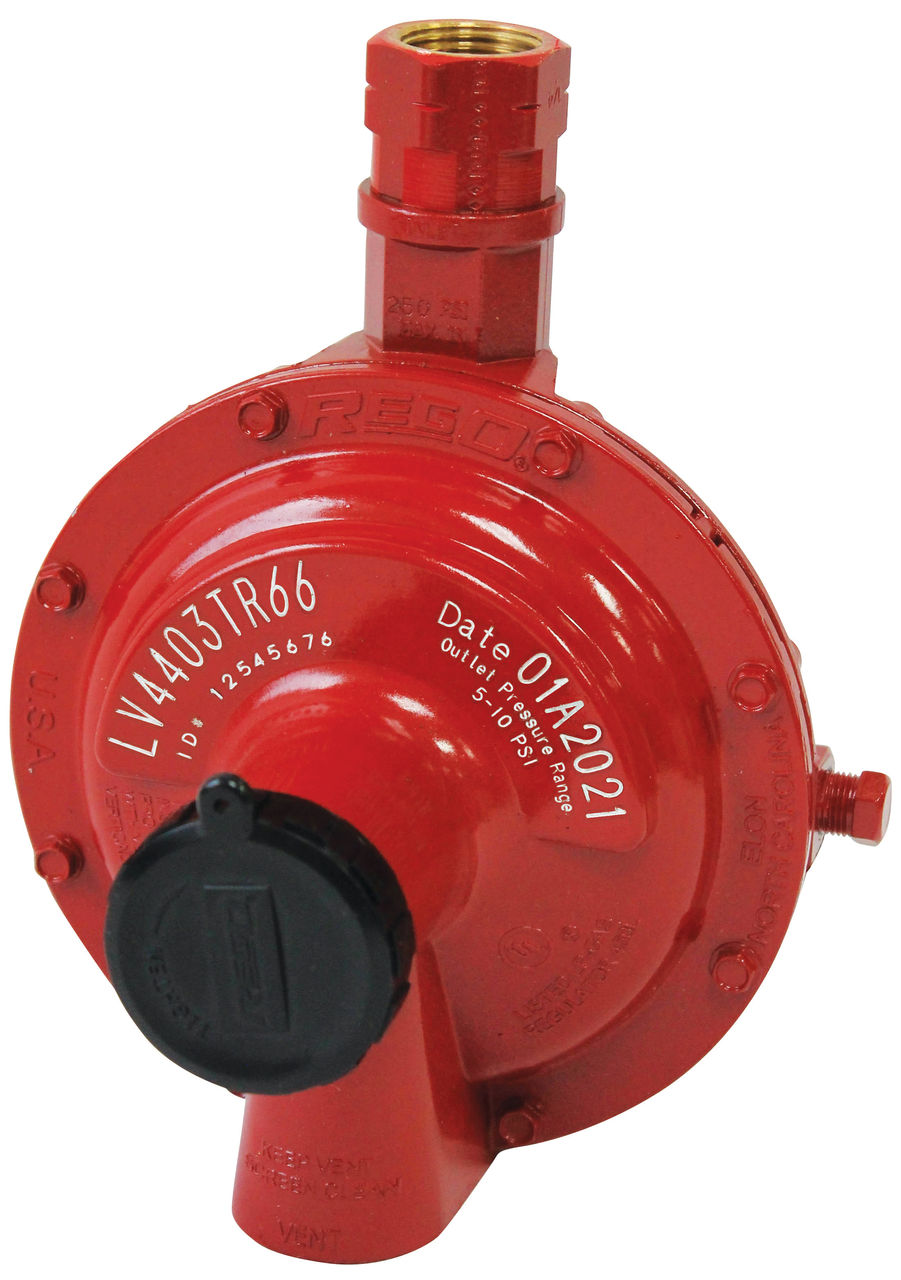

LV4403TR66

Visit Product Series:

Provides accurate first stage regulation in two-stage bulk tank systems. Reduce tank pressure to an intermediate pressure of 5 to 10 PSIG (0.34 to 0.69 BARG). Also used to supply high pressure burners for applications like industrial furnaces or boilers. Also incorporated in multiple cylinder installations.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Adjustment Range_mbar 0.34 - 0.69 Bar

Adjustment Range_PSIG 5-10 PSIG

Factory Delivery Pressure_mbar 0.69 Bar @ 3.44 Bar inlet

Factory Delivery Pressure_psig 10 PSIG @ 50 PSIG Inlet

Inlet Connection (in.) ¾” F. NPT

Outlet Connection (in.) ¾” F. NPT

vapor_capacity_metric_hr_propane 53 KG/hr

Bonnet Vent Position Over Outlet

Brand RegO

Connection Type F. NPT x F. NPT

Orifice Size ¼” (6.25mm)

vapor_capacity_btu__hr_propane 2,500,000 BTU/hr
