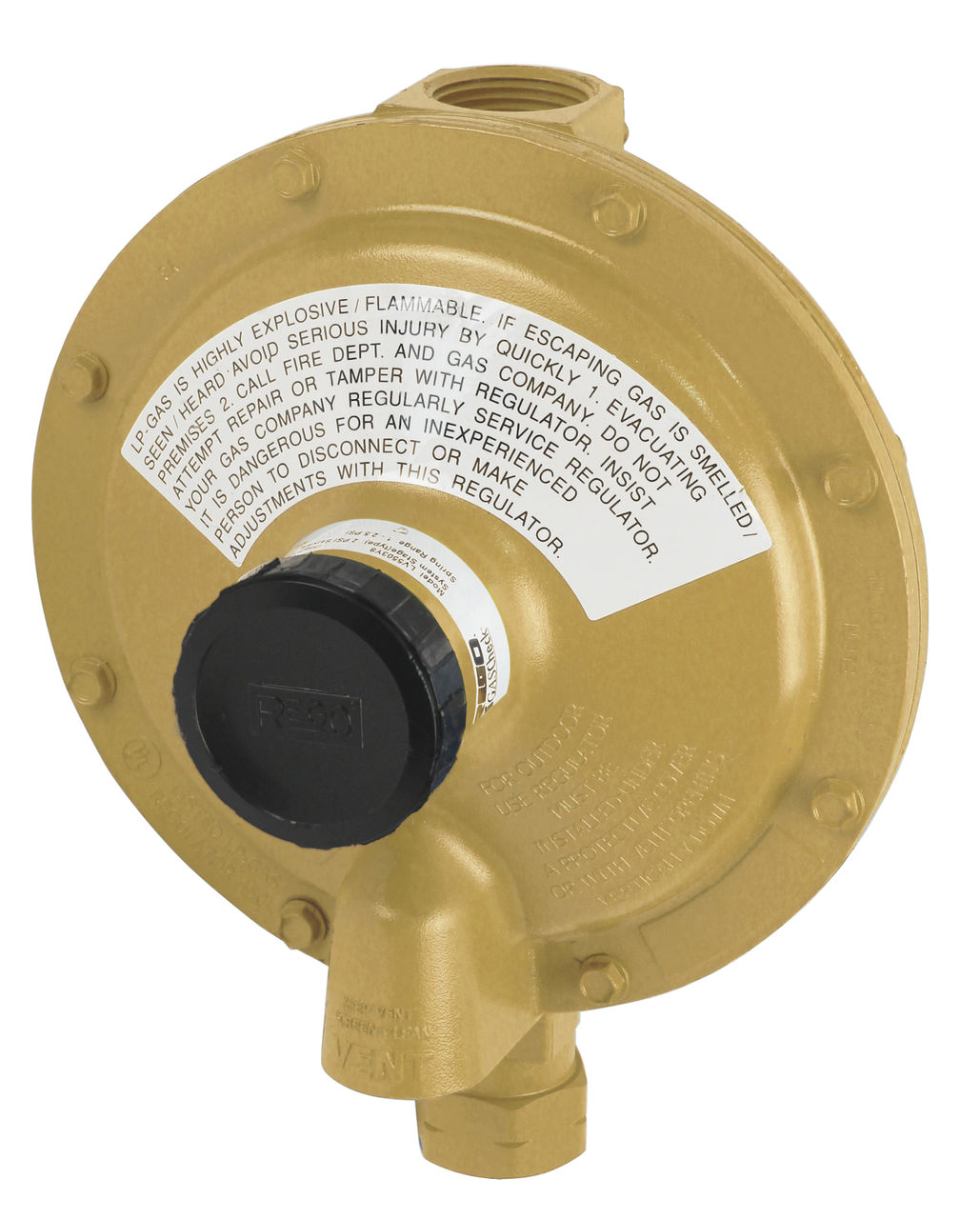

LV5503G4

Visit Product Series:

Especially developed for drying barns in the tobacco industry. The LV5503G4 regulator will supply a steady and constant flow of fuel to as many as 12 to 20 burners throughout the barn.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Adjustment Range_mbar 19.91-44.79 mbar

Adjustment Range_PSIG 8” - 18” w.c.

Factory Delivery Pressure_mbar 37.32mbar @ 1.03 bar

Factory Delivery Pressure_psig 15” w.c. @ 15 PSIG Inlet

Orifice Size(in) 1/4"

Orifice Size Metric 6.25mm

Vapor Capacity BTU/hr Propane 1,750,000 BTU/hr

Vapor Capacity kg/hr Propane 36.92 KG/hr

Adjustment Range wc 8” - 18” w.c.

Bonnet Vent Position Above Inlet

Brand RegO

Connection Type F. NPT x F. NPT

Inlet Connection ½” F. NPT

Inlet Connection (in.) 1/2"

Orifice Size ¼” (6.25mm)

Outlet Connection ¾” F. NPT

Outlet Connection (in.) 3/4"
