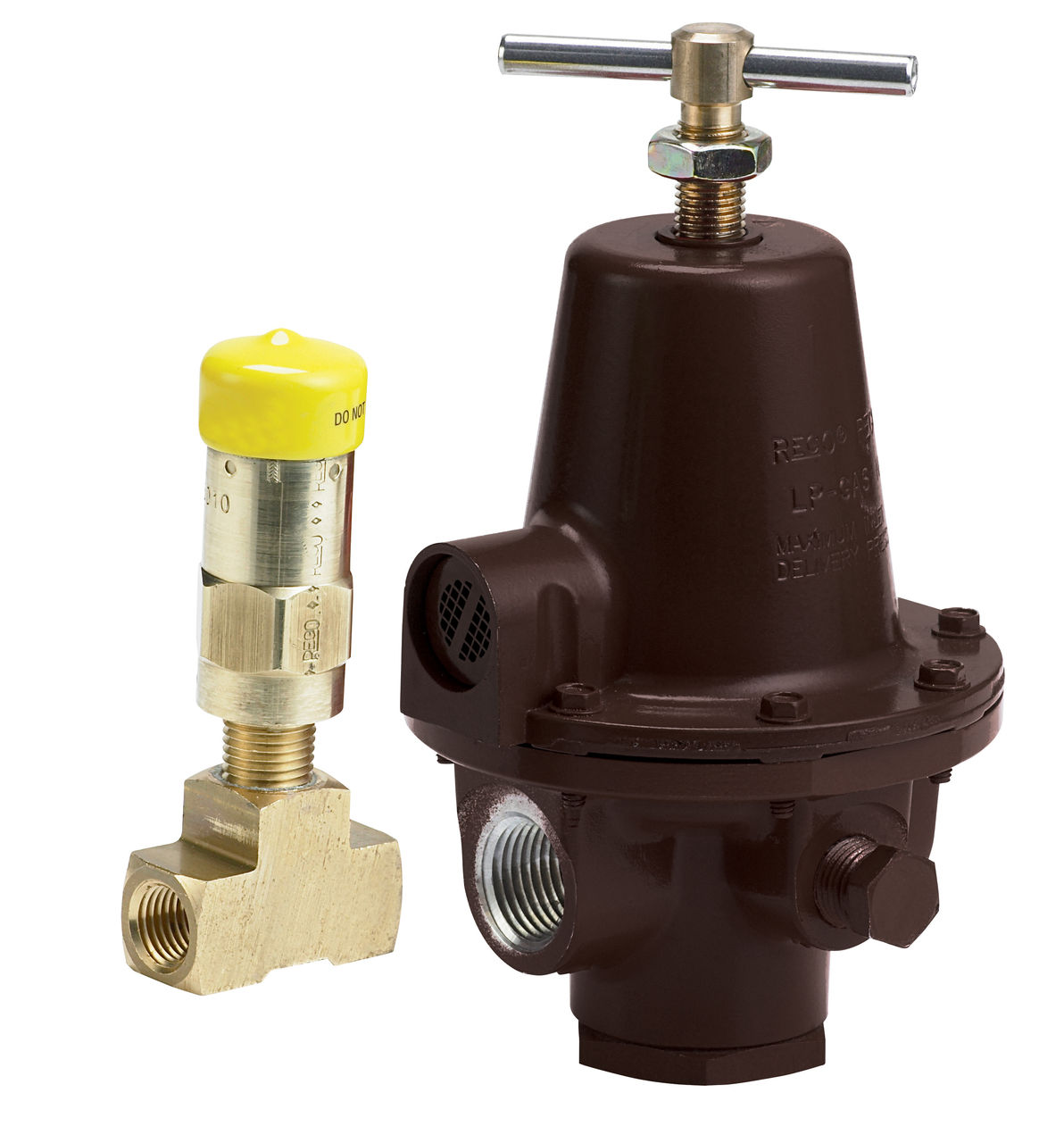

    X1584VH

    Visit Product Series:

    Designed to reduce lp_gas container pressures to between 3 and 50 PSIG. Ideal for crop drying, heat treating, asphalt batch mixing and other large industrial and commercial load application utilizing high temperature lp_gas or high temperature atmosphere under conditions up to 300ºF. Also ideal as a first stage regulator in large multiple operations.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Adjustment Range_mbar 3.1 to 8.6 bar
    Adjustment Range_PSIG 45 to 125 PSIG
    Capacity Determined At Set Pressure Of (BAR) 4.1 bar
    Capacity Determined at Set Pressure of PSIG 60 PSIG
    Capacity Determined at Set Pressure of PSIG_Bar 4.1 bar
    Capacity Determined at Set Pressure of PSIG_Bar 4.1 bar
    Vapor Capacity BTU/hr Propane 8,000,000 BTU/hr
    Vapor Capacity kg/hr Propane 169 KG/hr
    Adjustment Method Tee Handle
    Brand RegO
    Connection Type F.NPT x F.NPT
    Height 8 7/8"
    Inlet Connection ½” F. NPT
    Inlet Connection (in.) 1/2”
    Materials Body, Forged Aluminum |Bonnet, Die Cast Aluminum |Spring, Stainless Steel |Diaphragms, Integrated Fabric and Synthetic Rubber |Seat Discs, High Temperature Resilient Composition |Backup Seal, High Temperature Resilient Composition
    Outlet Connection ½” F. NPT
    Outlet Connection (in.) 1/2”
    Service LP-Gas
    Width 2 7/8”
