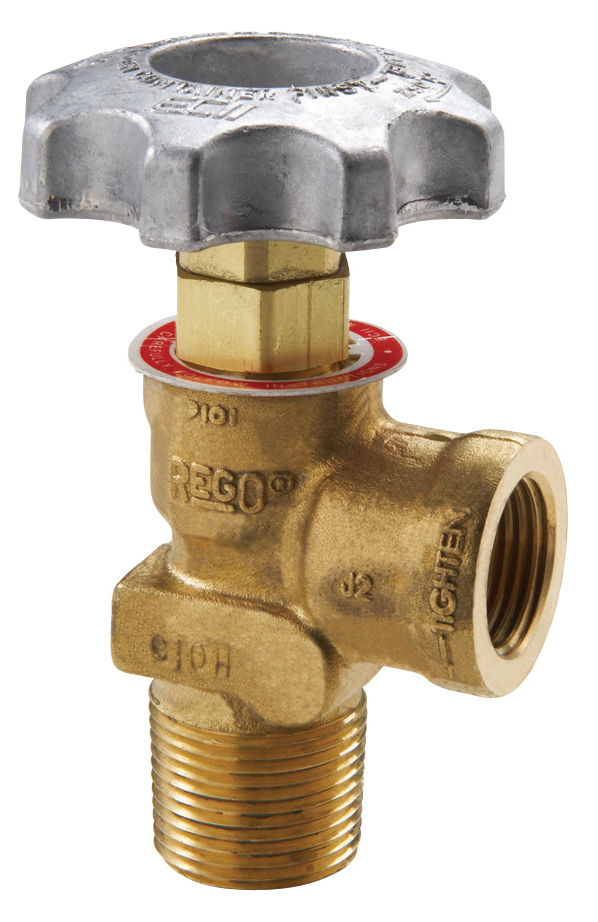

9101R11.7

Visit Product Series:

Designed for vapor withdrawal service on ASME and DOT containers or in fuel line applications. Since none of these valves have an integral pressure relief valve, they may only be used as an accessory valve on containers that have an independent pressure relief valve sufficient for that container’s capacity.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 100 (PSIG) 20.6 GPM

Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 10 (PSIG) 7.6 GPM

Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 50 (PSIG) 15.2 GPM

Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 25 (PSIG) 11.7 GPM

Container Connection (in.) 3/4" M. NGT

Service Connection (in.) F. POL (CGA 510)

Bonnet Style MultiBonnet® assembly

Brand RegO

Container Connection Type M. NGT

Dip Tube Length W Deflector 11.7

Fixed Liquid Level Vent Valve Yes

Materials Body, Forged Brass |Handwheel, Aluminum Die Cast |Stem, Brass |O-Rings, Resilient Synthetic Rubber |Seat Disc, Nylon

pdf_page 89

Ready To Go™ No

Service Connection Type F. POL
