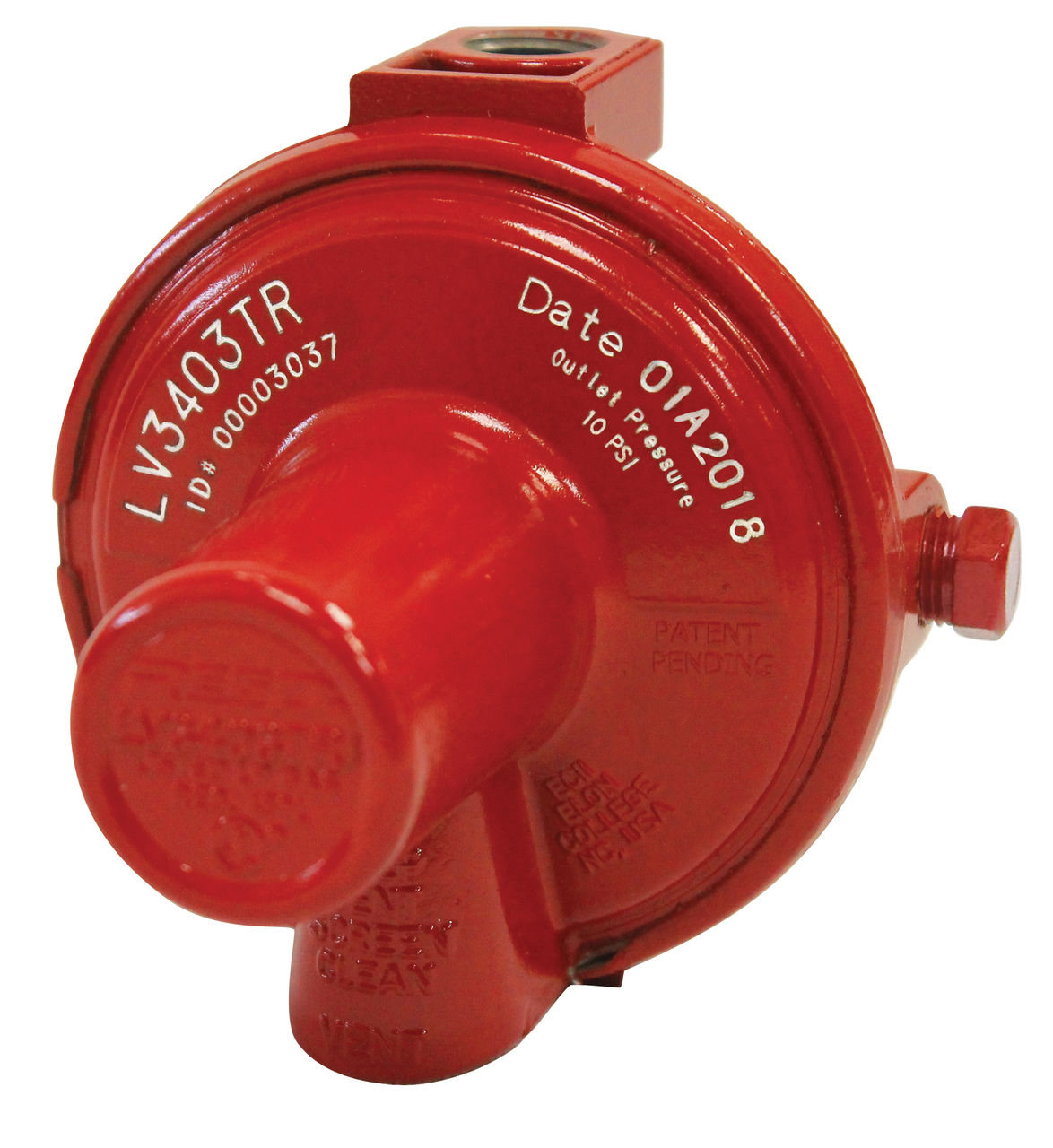

LV3403TR9V9

Visit Product Series:

Ideal for use as a first stage regulator on any domestic size ASME or DOT container in propane gas installations requiring up to 1,500,000 BTU’s per hour. The regulator is factory set to reduce container pressure to an intermediate pressure of approximately 10 PSIG (0.69 BARG).

Markets
Applications
Factory Delivery Pressure_mbar 0.69 Bar @ 3.44 Bar inlet
Factory Delivery Pressure_psig 10 PSIG @ 50 PSIG Inlet
Inlet Connection (in.) -
Orifice Size(in) #16 Drill
Orifice Size Metric 4.49mm
Outlet Connection (in.) 1/2"
Vapor Capacity BTU/hr Propane 1,500,000 BTU/hr
Vapor Capacity kg/hr Propane 32 KG/hr
Bonnet Ent Position Opposite Gauge Port
Bonnet Vent Position Opposite Gauge Port
Brand RegO
Connection Type F. POL x F. NPT
Factory Delivery Pressure 10 PSIG @ 50 PSIG Inlet (0.69 Bar @ 3.44 Bar inlet)
Inlet Connection F. POL
Materials Body, Zinc |Bonnet, Zinc |Spring, Steel |Seat Disc, Resilient Rubber |Diaphragm, Integrated Fabric and Synthetic Rubber
Orifice Size #16 Drill (4.49mm)
Outlet Connection ½” F. NPT
