Vapor Capacity BTU/hr Propane
1,000,000 BTU/hr
Vapor Capacity kg/hr Propane
21 KG/hr
Adjustment Range wc
9" to 13" w.c.
Body Design
Right Angle
Bonnet Vent Position
Over Inlet
Brand
RegO
Connection Type
F. NPT x F. NPT
Inlet Connection
¾" F. NPT
Materials
Body, Die Cast Zinc
|Bonnet, Die Cast Zinc
|Nozzle Orifice, Brass
|Spring, Steel
|Valve Seat Disc, Resilient Rubber
|Diaphragm, Integrated Fabric and Synthetic Rubber
Orifice Size
3/16”
(4.78mm)
Outlet Connection
¾" F. NPT
pdf_page
51

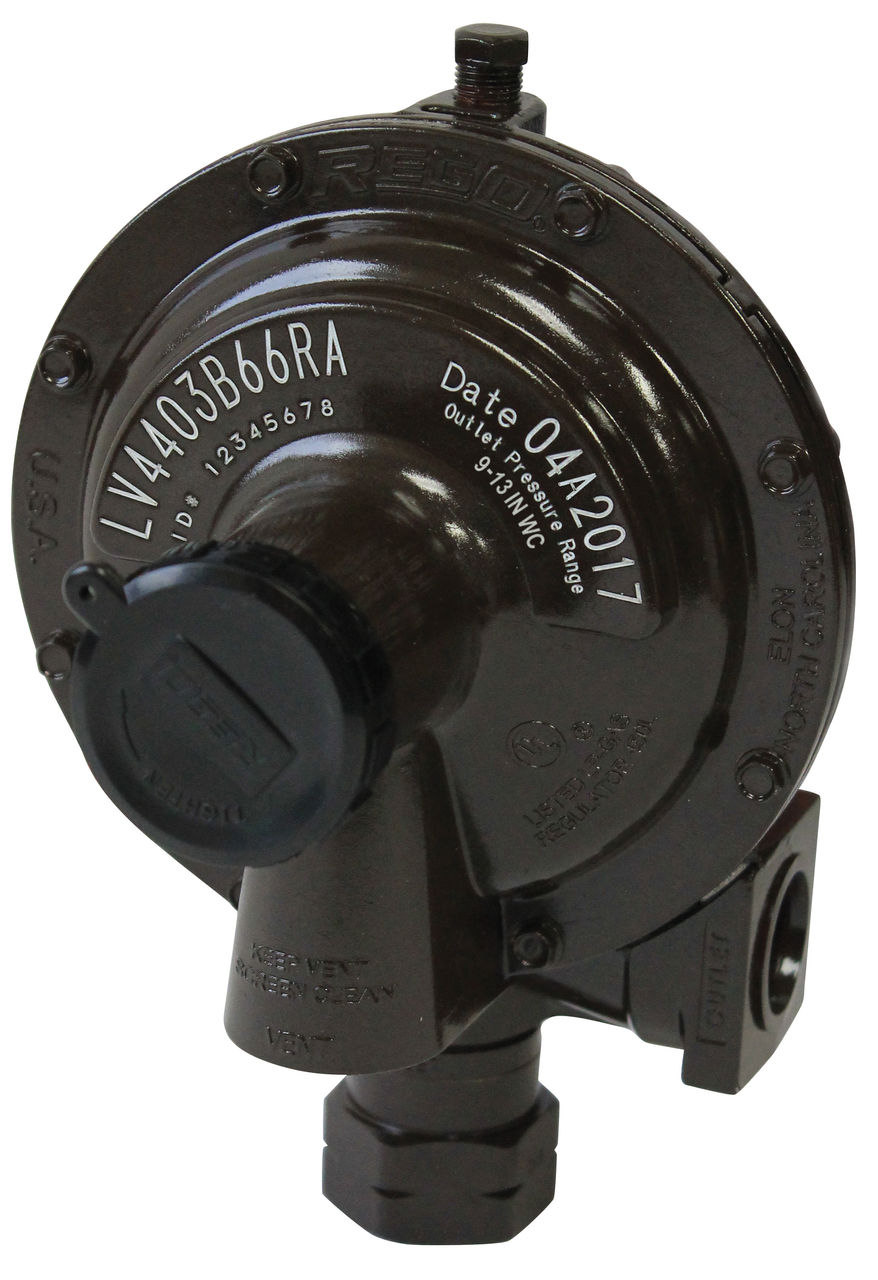

Right Angle Sesign
Can mount directly to vapor meter. It is also suitable for mounting directly to the house piping. It will retrofit into existing installations that are currently using a 90 degree, right angle regulator.
