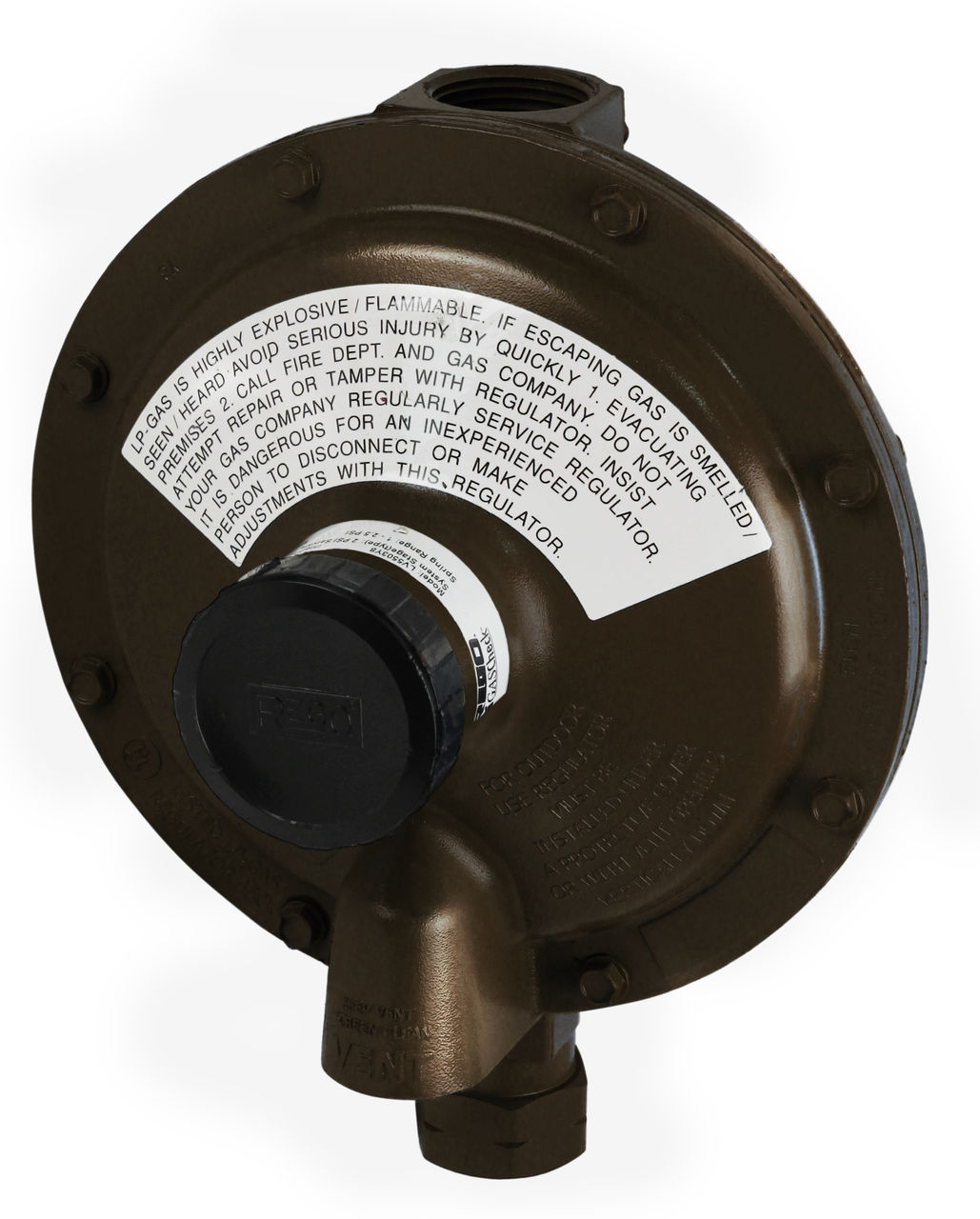

LV5503B8*

Visit Product Series:

Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure,normally 11” w.c. Ideal for larger commercial and industrial applications, multiple cylinder installations and large domestic systems.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Adjustment Range_mbar 22.4 to 32.3 mbar

Factory Delivery Pressure_mbar 27.4 mbar at 0.69 bar

Factory Delivery Pressure_psig 11" w.c. at 10 PSIG Inlet

Inlet Connection (in.) 3/4"

Orifice Size(in) 9/32"

Orifice Size Metric 7.14mm

Outlet Connection (in.) 1"

Vapor Capacity BTU/hr Propane 2,300,000 BTU/hr

Vapor Capacity kg/hr Propane 48 kg/hr

Adjustment Range wc 9" to 13" w.c.

Bonnet Vent Position Over Inlet

Brand RegO

Connection Type F. NPT x F. NPT
