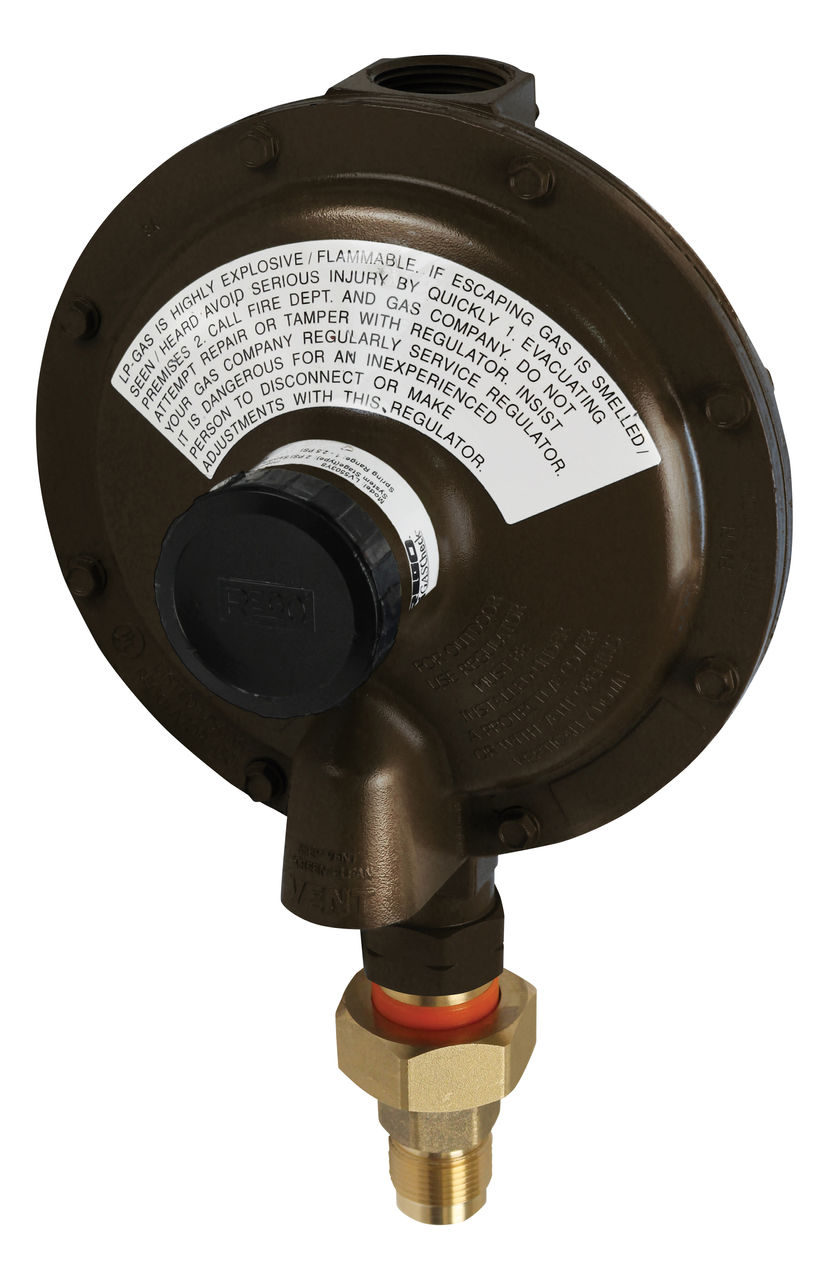

LV5503B8

Visit Product Series:

Designed to reduce first stage pressure of 5 to 20 PSIG (0.34 to 1.38 BARG) down to burner pressure,normally 11” w.c. Ideal for larger commercial and industrial applications, multiple cylinder installations and large domestic systems.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Adjustment Range_mbar 22.4 to 32.3 mbar

Adjustment Range_PSIG 9” to 13” w.c.

Factory Delivery Pressure_mbar 27.4 mbar at 0.69 bar

Factory Delivery Pressure_psig 11” w.c. at 10 PSIG Inlet

Vapor Capacity BTU/hr Propane 23,00,000

Vapor Capacity kg/hr Propane 48 kg/hr

Bonnet Vent Position Over Inlet

Brand RegO

Connection Type F. NPT x F. NPT

Inlet Connection ¾” F. NPT

Orifice Size ¼” (6.25mm)

Outlet Connection 1” F. NPT
