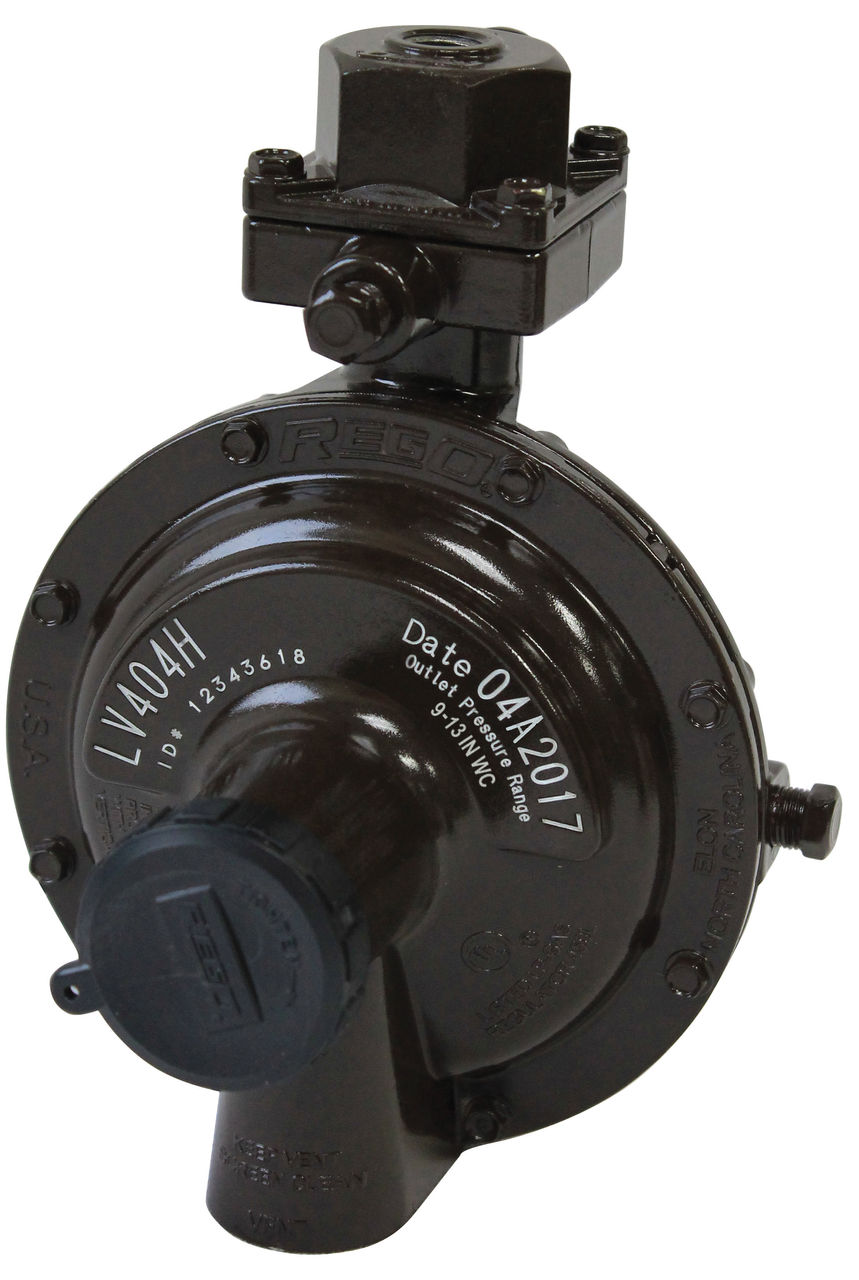

LV404H415

Visit Product Series:

This two-stage regulator is designed to reduce container pressure down to pressure higher than 11” water column. The actual pressure setting is specified in the table below. These regulators are designed for installations where the appliances require pressures greater than 11 inches w.c.

Markets

Applications

Installation Guides

Specifications

Adjustment Range_mbar 27.4 - 43.5 mbar

Adjustment Range_PSIG 11 - 17.5" w.c.

Factory Delivery Pressure_mbar 37.32mbar @ 1.03 bar

Factory Delivery Pressure_psig 15” w.c. @ 100 PSIG Inlet

Inlet Connection (in.) 1/4"

Orifice Size(in) 3/16"

Orifice Size Metric 4.78mm

Outlet Connection (in.) 1/2"

Vapor Capacity BTU/hr Propane 600,000 BTU/hr

Vapor Capacity kg/hr Propane 13 KG/hr

Accessories-1St Stage Vent Pipe Away 404PE

Accessories 1st Stage Vent Pipe-Away 404PE

Adjustment Range wc 11 - 17.5" w.c.

Bonnet Vent Position 2nd Stage Over Outlet

Bonnet Vent Position 1st Stage Rear

Brand RegO

Connection Type F. NPT x F. NPT

Inlet Connection ¼” F. NPT

Materials Body First Stage (LV404B39), Brass |Body First Stage (LV404B34), Die Cast Zinc |Bonnet Second Stage, Die Cast Zinc |Diaphragms, Integrated Fabric and Synthetic Rubber |Springs, Steel and Stainless Steel |Valve Discs, Resilient Synthetic Rubber

Orifice Size 3/16” (4.78mm)

Outlet Connection ½” F. NPT
