SSA3218F410

Visit Product Series:

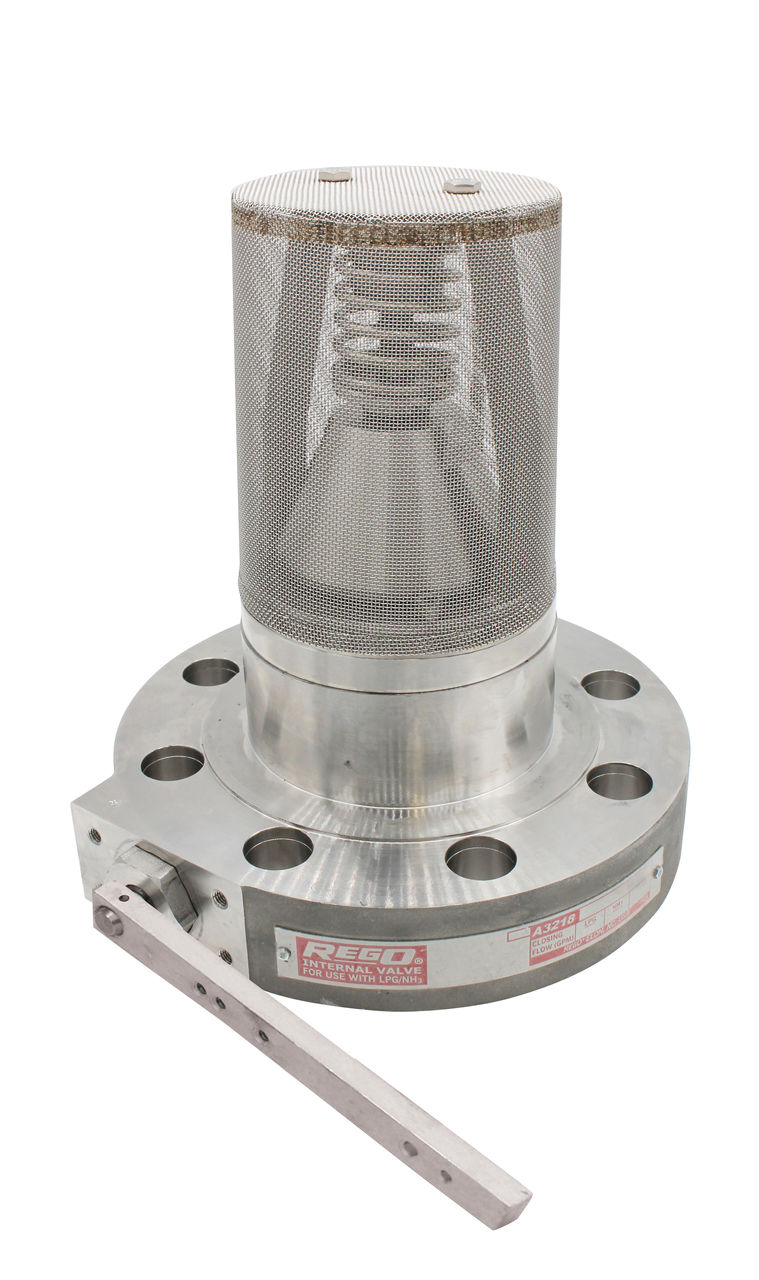

Stainless steel internal valve series for use with LP-Gas or NH3 on Bobtails, Transports, Storage Plants, or Nurse tanks. Can be actuated manually, by remote cable, or by various actuator types (sold separately).

Markets
Applications
Temperature Max (C) 73
Temperature Max (F) 165
temperaturemetricmax_c 73
Temperature Min C -40
Temperature Min (F) -40
Accessories Pnuematic Actuator A3218PA
Accessories_Rotary Actaotor A3218OA A3218RA
Brand RegO
Closing Flow LP Gas 410 GPM
Closing Flow NH3 372 GPM
Connection Type 300# ANSI RF Modified Flange x 300# ANSI RF Flange
Inlet Connection 3” 300# ANSI RF Modified Flange
Material Details Body,Stainless Steel |Stem,Stainless Steel |Seat,Stainless Steel |Seat Disc,Nitrile |Springs,Stainless Steel |Stem Seals,PTFE
Outlet Connection 3” 300# ANSI RF Flange
